The following equations are obtained from a free-body diagram of a rectangular farm gate, supported by two hinges on the left-hand side. A bucket of grain is hanging from the latch. $$ \begin{array}{c}{-A+C=0} \\ {+B-392 \mathrm{N}-50.0 \mathrm{N}=0} \\ {A(0)+B(0)+C(1.80 \mathrm{m})-392 \mathrm{N}(1.50 \mathrm{m})} \\ {-50.0 \mathrm{N}(3.00 \mathrm{m})=0}\end{array} $$ (a) Draw the free-body diagram and complete the statement of the problem, specifying the unknowns. (b) Determine the values of the unknowns and state the physical meaning of each.

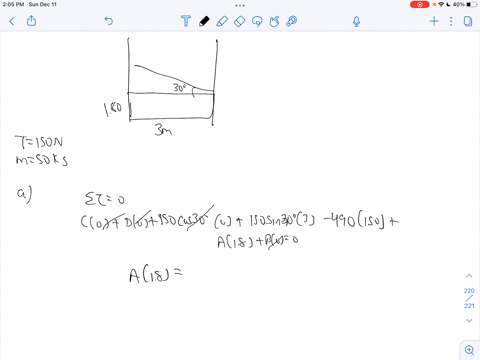

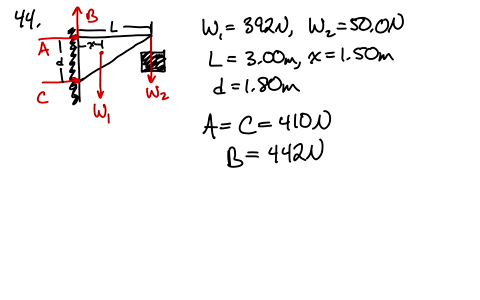

The following equations are obtained from a free-body diagram of a rectangular farm gate, supported by two hinges on the left-hand side. A bucket of grain is hanging from the latch.
$$
\begin{array}{c}{-A+C=0} \\ {+B-392 \mathrm{N}-50.0 \mathrm{N}=0} \\ {A(0)+B(0)+C(1.80 \mathrm{m})-392 \mathrm{N}(1.50 \mathrm{m})} \\ {-50.0 \mathrm{N}(3.00 \mathrm{m})=0}\end{array}
$$
(a) Draw the free-body diagram and complete the statement of the problem, specifying the unknowns. (b) Determine the values of the unknowns and state the physical meaning of each.

Key Concepts

Free-Body Diagram

A free-body diagram is a graphical representation that depicts all the forces and moments acting on a body, isolated from its surroundings. It is essential in statics to visualize where forces are applied and to locate the points of action, which in turn helps in setting up the relevant equilibrium equations. This diagram abstracts the object into a simplified shape, showing applied loads, reaction forces at supports, and distances from a chosen pivot point for moments.

Static Equilibrium

Static equilibrium refers to the condition where an object remains at rest or in constant motion, meaning that the sum of all forces and the sum of all moments (torques) acting on the body must be zero. This principle is fundamental to solving problems in statics, as it leads to the establishment of equations for force balance in different directions and for moments about specific points.

Reaction Forces

Reaction forces are the forces exerted by supports, hinges, or other constraints that prevent a body from moving. In problems involving supports or connections, these forces are unknowns to be determined using the equilibrium conditions. They can include both horizontal and vertical components, and accurately calculating them is crucial to understanding how the structure supports applied loads.

Moment (Torque) Calculation

The moment of a force about a point, often referred to as torque, is a measure of the force's tendency to cause rotation about that point. It is calculated by multiplying the force by the perpendicular distance from the point to the line of action of the force. Taking moments about different points is a key technique for solving for unknown forces in statics problems, particularly when dealing with complex systems with multiple loads.
