Three negative point charges lie along a line as shown in Figure 17.52 . Find the magnitude and

Three negative point charges lie along a line as shown in...

Key Concepts

Coulomb's Law

Coulomb's Law describes the electric force between two point charges. It states that the magnitude of the force, and thus the electric field produced by a point charge, is directly proportional to the product of the charges and inversely proportional to the square of the distance between them. This law serves as the foundation for calculating how individual point charges contribute to the overall electric field at a given location.

Electric Field

The electric field is a vector field that represents the force per unit charge exerted on a small positive test charge placed in the field. Electric fields are produced by electric charges and can vary in magnitude and direction depending on the charge distribution. Understanding the electric field concept is essential in determining how charges influence space around them.

Superposition Principle

The Superposition Principle states that when multiple charges are present, the total electric field at any point is the vector sum of the electric fields produced by each individual charge. This principle is crucial for solving problems involving multiple charges, as it allows for the separate calculation of each field contribution before combining them to find the net electric field.

Vector Addition

Vector addition is the process of combining two or more vectors to determine their cumulative effect. In the context of electric fields, each electric field from a point charge has both a magnitude and a direction. By decomposing these fields into their components and summing them vectorially, one can find the net electric field at a point, accounting for both magnitude and direction.

Geometric Analysis

Geometric analysis involves understanding the spatial arrangement of the charges and the point where the field is being calculated. This includes using the positions, distances, and angles between the charges and the point of interest. Correct interpretation of the geometry is important for applying Coulomb's Law and the superposition principle accurately, as it influences the calculation of distance-dependent fields and the direction of their vectors.

Transcript

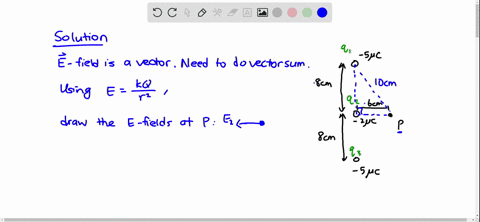

00:01 In this question, we have three negative charges, a range in a vertical line.

00:06 We want to find the net electric field at point p.

00:11 So to solve the problem, you need to recognize that electric field is a vector quantity.

00:22 So we expect here we have three vectors, three electric field vectors at point p.

00:32 So we need to do vector sum in this case.

00:40 K and then we'll be using the formula for point charge.

00:44 The electric fuel due to point charges is kq over r square.

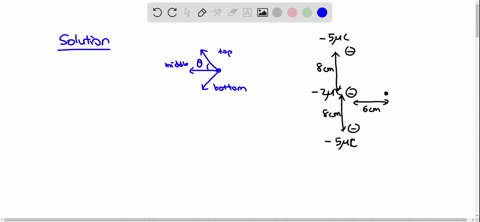

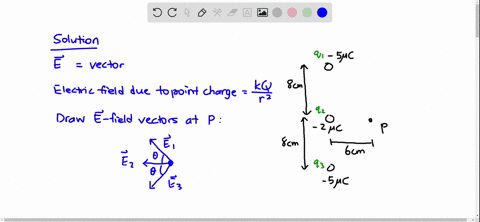

00:49 Okay, so first we will draw the e -fews at point p due to the three charges.

01:01 Okay, so this is p and so by the two microculum charge negative charge.

01:09 We have a e2 pointing to the left.

01:10 So for negative charges, the electric field point towards the charge.

01:19 Then you have e1 and e3 pointing in this way.

01:23 And then these two angles are the same.

01:26 Because they are symmetrical or an equidistant to a point p is symmetrical to or equal distance or equidistant from the two charges.

01:38 Okay.

01:39 So because of equidistant and same amount of q charge so we know that we want to be equal in magnitude since he is equal to two to two two two two two two two one and q3 then the next thing is by symmetry in the vertical components of e1 and e3 cancel out okay so we we only need to consider the tax components of e1 and e3 and then some there with e2 and that will give us the next electric field at point p.

02:41 So we need, we also need the distances.

02:48 So we have r2, ar2 is 6m from a diagram.

02:54 Okay, we need r1 and r3.

02:56 So r1 is equal to r3, so we just need to find out what it's r2.

03:01 Then we know r3...
