Truck suspensions often have "helper springs" that engage at...

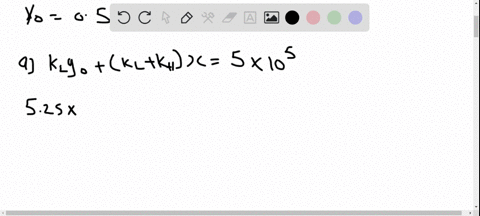

Truck suspensions often have "helper springs" that engage at high loads. One such arrangement is a leaf spring with a helper coil spring mounted on the axle, as shown in Figure P5.26. When the main leaf spring is compressed by distance $y_{0},$ the helper spring engages and then helps to support any additional load. Suppose the leaf spring constant is $5.25 \times 10^{5} \mathrm{N} / \mathrm{m}$ , the helper spring constant is $3.60 \times 10^{5} \mathrm{N} / \mathrm{m},$ and $y_{0}=0.500 \mathrm{m} .$ (a) What is the compression of the leaf spring for a load of $5.00 \times 10^{5} \mathrm{N}$ ? (b) How much work is done in compressing the springs?

Key Concepts

Composite Spring Systems

Composite spring systems involve multiple springs working together to support loads. These can be arranged in series, parallel, or more complex configurations, where each spring may engage at different levels of load or displacement. Understanding how individual spring constants combine helps in predicting the overall behavior of such systems.

Elastic Potential Energy in Springs

Elastic potential energy is the energy stored in a spring when it is compressed or extended. For an ideal spring, this energy is given by the equation U = (1/2)kx², where k is the spring constant and x is the displacement. This concept is essential for calculating the work done in compressing or extending a spring.

Threshold Engagement

Threshold engagement refers to the point at which an additional component, such as a helper spring, becomes active in supporting a load. In systems where a primary mechanism has a limit, a secondary system may engage after a certain displacement or load is reached. This concept is important in designing systems that need to exhibit different behaviors under varying load conditions.

Hooke's Law

Hooke's Law is a principle of physics that states that the force needed to extend or compress a spring by some distance is proportional to that distance. It is generally expressed as F = kx, where F is the force applied, k is the spring constant, and x is the displacement from equilibrium. This law forms the basis for analyzing the behavior of springs under load in mechanical systems.

Spring Constant

The spring constant, denoted by k, is a measure of a spring's stiffness. It quantifies the force required to produce a unit displacement in the spring. A higher spring constant means a stiffer spring that requires more force to achieve the same displacement than a spring with a lower spring constant.
