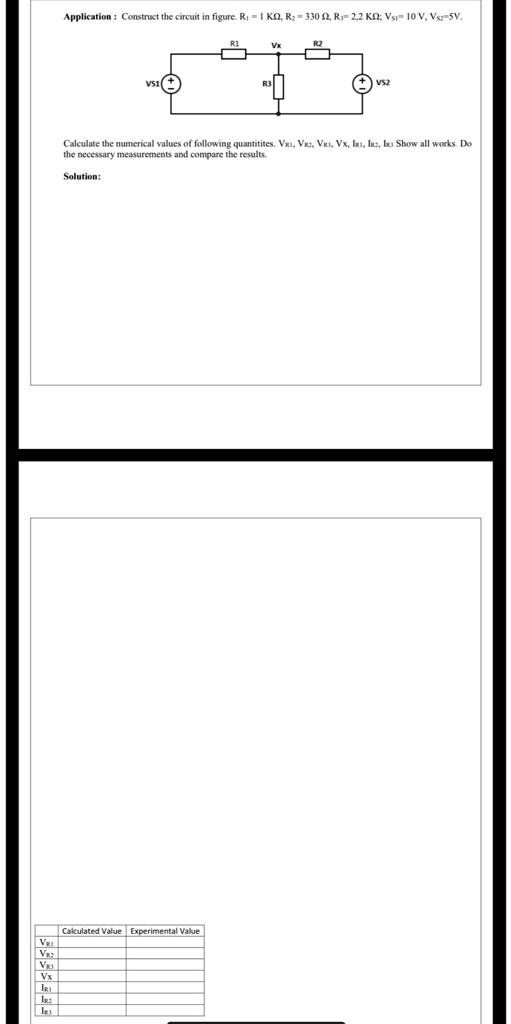

Application: Construct the circuit in figure. R? = 1 ??, R? = 330 ?, R?= 2,2 ??; VS?= 10 V, Vs?=5V.
VS?
VS?
Calculate the numerical values of following quantities. VR?, VR?, VR?, Vx, IR?, IR?, IR? Show all works. Do
the necessary measurements and compare the results.
Solution:
Calculated Value Experimental Value
VR?
VR?
VR?
Vx
IR?
IR?
IR?
