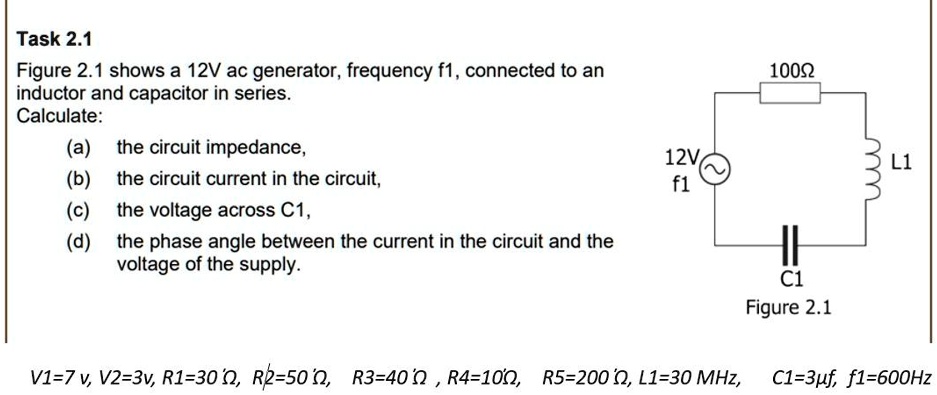

Task 2.1
Figure 2.1 shows a 12V ac generator, frequency f1, connected to an
inductor and capacitor in series.
Calculate:
(a) the circuit impedance,
(b) the circuit current in the circuit,
(c) the voltage across C1,
(d) the phase angle between the current in the circuit and the
voltage of the supply.
12V
f1
100$\Omega$
L1
C1
Figure 2.1
V1=7 v, V2=3v, R1=30 $\Omega$, R2=50 $\Omega$, R3=40 $\Omega$, R4=10$\Omega$, R5=200 $\Omega$, L1=30 MHz, C1=3$\mu$f, f1=600Hz
