5. (20) For the mechanism shown, the angular velocity of link AB is ?AB = 2 rad/s clockwise. For

Question

Sri K · Answer

To solve our first part of the question, we need to draw here the state diagram. State diagram f

Adi S · Answer

we need to draw a diagram first. So this is the diagram. Velocity of point B will be VB equals O

Sri K · Answer

Hello everyone. So in this question we have to calculate velocity at point A at point B and the

Sri K · Answer

To find the angular velocities of the links BC and CD using the instantaneous center method, you

Sheh Lit Chang · Answer

In this question, we have two links, link AB and BC. Link AB is 3 meters, link BC is 2 meters. T

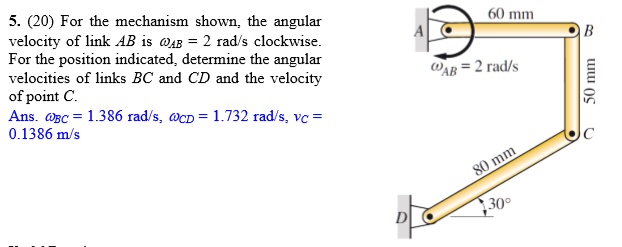

5. (20) For the mechanism shown, the angular velocity of link AB is ?AB = 2 rad/s clockwise. For the position indicated, determine the angular velocities of links BC and CD and the velocity of point C. Ans. ?BC = 1.386 rad/s, ?CD = 1.732 rad/s, vC = 0.1386 m/s
