A 20Ω load receives power from parallel-connected battery cells, as shown in the figure below. Determine the load current. a. 0.5854 A b. 0.6565 A c. 0.7634 A d. 0.5774 A
Added by Jamie N.
Step 1
Given: Resistance of each battery, R = 12Ω Using the formula for resistors in parallel: 1/Req = 1/R1 + 1/R2 1/Req = 1/12 + 1/12 1/Req = 2/12 Req = 6Ω Show more…
Show all steps
Your feedback will help us improve your experience
Ankur S and 80 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

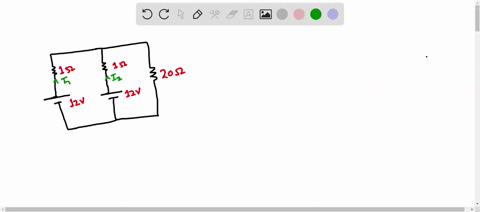

200 load receives power from parallel-connected battery cells, as shown in the figure below: Determine the terminal voltage of the parallel-connected battery cells_ Ohm Ohm R_LOAD 20 Ohms V2 12 V 12 V
Sikandar B.
In Fig. $5.183$ shown, if a battery is connected between points $A$ and $B$, e.m.f $E=18 \mathrm{~V}$, the current flowing through the battery is a. $10 \mathrm{~A}$ b. $20 \mathrm{~A}$ c. $5 \mathrm{~A}$ d. $15 A$
For the capacitor network shown in $\textbf{Fig. E24.29}$, the potential difference across $ab$ is 220 V. Find (a) the total charge stored in this network; (b) the charge on each capacitor; (c) the total energy stored in the network; (d) the energy stored in each capacitor; (e) the potential difference across each capacitor.
Capacitance and Dielectrics
Energy Storage in Capacitors and Electric-Field Energy
