A 440V dc shunt motor takes an armature current of 60A when its speed is 750 rpm. Determine the torque developed in the armature if the armature resistance is 0.25Ω. 189.56 N-m 341.82 N-m 324. 68 N-m 212.45 N-m
Added by Nathaniel O.
Step 1
The voltage drop across the armature resistance (I_a * R_a) is the product of the armature current (I_a) and the armature resistance (R_a). Given: - Total supplied voltage (V) = 440V - Armature current (I_a) = 60A - Armature resistance (R_a) = 0.25Ω Calculate Show more…
Show all steps
Close
Your feedback will help us improve your experience
Madhur L and 92 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

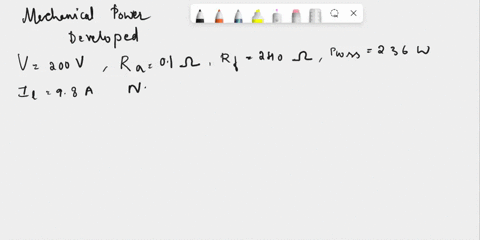

A 200V DC shunt motor has motor armature, Ra = 0.1 ̦ and field resistance, Rf = 240 ̦. The rotational losses are given at 236 W. At full load, the line current is 9.8 A with the motor running at 1450 rpm. Determine: i. The mechanical power developed ii. The output power iii. The load torque iv. Full load efficiency
Adi S.

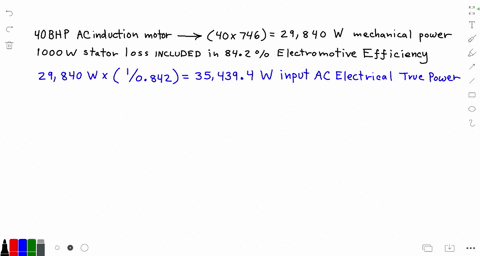

A 40 HP, 230V, 8-pole, 25 Hz induction motor is running at 355 rpm at rated load. If the motor has an efficiency of 84.2% at full load, determine the torque in N-m due to mechanical loss. Stator loss amounts to 1000 W.
Mark S.
A 6-pole, 3.0 hp 120V DC lap-wound shunt motor has 960 conductors in the armature. It takes 25.0 A from the supply at full load. The armature resistance is 0.752 Ω, flux/pole = 10.0 mWb, and the field winding current is 1.20 A. Find the speed and torque.
Sri K.
