The current through a resistive component is measured at a few different voltages: Voltage (V) 2 5 15 Current (I) 1.7 4.2 12.5 a) Plot this information on the graph paper below. Put the voltage values on the y axis. b) Draw the line of best fit through the data points
Added by Ethan M.
Step 1
The y-axis will be labeled as "Voltage (V)" and the x-axis will be labeled as "Current (I)". Then, we plot the points (1.7, 2), (4.2, 5), and (12.5, 15) on the graph. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Breanna Ollech and 54 other Algebra educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Sri K.

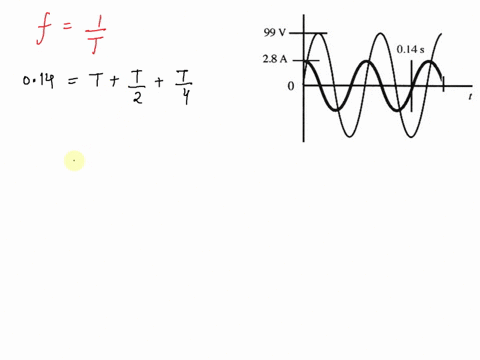

The graph shows the voltage across and the current through single circuit element connected to an ac generator. 99 V 0.14 s 2.8 A Determine the frequency of the generator A) 0.14 Hz B) 7.14 Hz C) 125 Hz D) 25.0 Hz E) 50.0 Hz Determine the rms voltage across this element A) 70.0 V B) 49.5 V C) 112 V D) 140 V E) 170 V
