Semiconductor Physics and Devices

Donald A. Neamen

Chapter 9

Metal–Semiconductor and Semiconductor Heterojunctions - all with Video Answers

Educators

Chapter Questions

Problem 1

Consider a contact between $\mathrm{Al}$ and $\mathrm{n}$ Si doped at $N_{d}=10^{16} \mathrm{~cm}^{-3} . T=300 \mathrm{~K}$.
(a) Draw the energy-band diagrams of the two materials before the junction is formed
(b) Draw the ideal energy band at zero bias after the junction is formed. ( $c$ ) Calculate $\phi_{B 0}, x_{d}$, and $\mathrm{E}_{\max }$ for part $(b) .(d)$ Repeat parts $(b)$ and $(c)$ using the data in Figure $9.5 .$

Chai Santi

Chai Santi

Numerade Educator

Problem 2

(a) A Schottky barrier diode formed on n-type silicon has a doping concentration of $N_{d}=5 \times 10^{15} \mathrm{~cm}^{-3}$ and a barrier height of $\phi_{B 0}=0.65 \mathrm{~V}$. Determine the builtin potential barrier $V_{b i}$. $(b)$ If the doping concentration changes to $N_{d}=10^{16} \mathrm{~cm}^{-3}$, determine the values of $\phi_{B 0}$ and $V_{b i} .$ Do these values increase, decrease, or remain the same?
(c) Repeat part ( $b$ ) if the doping concentration is $N_{d}=10^{15} \mathrm{~cm}^{-3}$.

Chai Santi

Numerade Educator

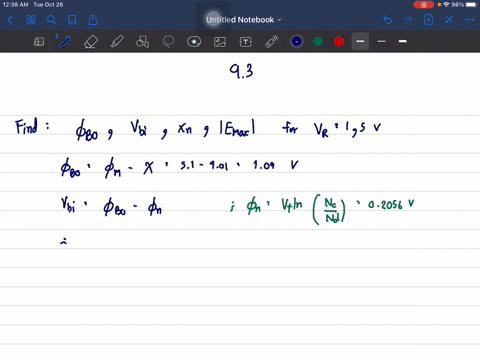

Problem 3

Gold is deposited on n-type silicon forming an ideal rectifying junction. The doping concentration is $N_{d}=10^{16} \mathrm{~cm}^{-3}$. Assume $T=300 \mathrm{~K}$. Determine the theoretical values of $(a) \phi_{B 0},(b) V_{b i}$, and $(c) x_{n}$ and $\left|\mathrm{E}_{\max }\right|$ at $(i) V_{R}=1 \mathrm{~V}$ and (ii) $V_{R}=5 \mathrm{~V}$.

Chai Santi

Numerade Educator

Problem 4

A Schottky diode is formed by depositing gold on $\mathrm{n}$ -type GaAs that is doped at a concentration of $N_{d}=5 \times 10^{15} \mathrm{~cm}^{-3}$. For $T=300 \mathrm{~K}$, determine the theoretical values of
(a) $\phi_{B 0},(b) \phi_{n},(c) V_{b i}$, and $(d) x_{n}$ and $\left|\mathrm{E}_{\max }\right|$ at
(i) $V_{R}=1 \mathrm{~V}$ and
(ii) $V_{R}=5 \mathrm{~V}$.

Chai Santi

Numerade Educator

Problem 5

Repeat Problem 9.4, parts (b) through $(d)$, if the experimentally determined barrier height is found to be $\phi_{B n}=0.88 \mathrm{~V}$.

Chai Santi

Numerade Educator

Problem 6

(a) A Pt-n-type silicon junction with $N_{d}=10^{15} \mathrm{~cm}^{-3}$ has a cross-sectional area of $A=10^{-4} \mathrm{~cm}^{2}$. Let $T=300 \mathrm{~K}$. Using the data shown in Figure $9.5$, determine the junction capacitance at (i) $V_{R}=1 \mathrm{~V}$ and (ii) $V_{R}=5 \mathrm{~V} .(b)$ Repeat part $(a)$ for a doping concentration of $N_{d}=10^{16} \mathrm{~cm}^{-3}$.

Chai Santi

Numerade Educator

Problem 7

A Schottky diode with $\mathrm{n}$ -type GaAs at $T=300 \mathrm{~K}$ yields the $1 / C^{\prime 2}$ versus $V_{R}$ plot shown in Figure $\mathrm{P} 9.7$, where $C^{\prime}$ is the capacitance per $\mathrm{cm}^{2}$. Determine $(a) V_{b j}(b) N_{d}$, (c) $\phi_{n}$, and $(d) \phi_{B 0}$.

Chai Santi

Numerade Educator

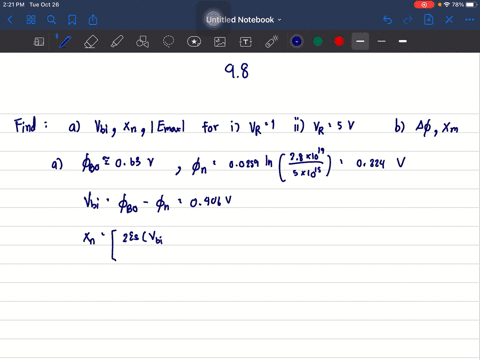

Problem 8

Consider a W-n-type silicon Schottky barrier at $T=300 \mathrm{~K}$ with $N_{d}=5 \times 10^{15} \mathrm{~cm}^{-3}$. Use the data in Figure $9.5$ to determine the barrier height. ( $a$ ) Determine $V_{b i}, x_{n}$, and $\left|\mathrm{E}_{\max }\right|$ for $(i) V_{R}=1 \mathrm{~V}$ and $(i i) V_{R}=5 \mathrm{~V} .(b)$ Using the values of $\left|\mathrm{E}_{\max }\right|$ from part $(a)$, determine the Schottky barrier lowering parameters $\Delta \phi$ and $x_{m}$.

Chai Santi

Numerade Educator

Problem 9

Starting with Equation (9.12), derive Equations (9.14) and (9.15).

Chai Santi

Numerade Educator

Problem 10

A Au-n-GaAs Schottky diode at $T=300 \mathrm{~K}$ is doped at a concentration of $N_{d}=10^{16} \mathrm{~cm}^{-3}$. Use the data in Figure $9.5$ to determine the barrier height. Then determine (a) $V_{b i}, x_{n}$, and $\left|\mathrm{E}_{\max }\right|$ for zero bias. (b) Determine the reverse-biased voltage at which the Schottky barrier lowering, $\Delta \phi$, will be 5 percent of the barrier height.

Chai Santi

Numerade Educator

Problem 11

Consider n-type silicon doped at $N_{d}=10^{16} \mathrm{~cm}^{-3}$ with a gold contact to form a Schottky diode. Investigate the effect of Schottky barrier lowering. (a) Plot the Schottky barrier lowering $\Delta \phi$ versus reverse-biased voltage over the range $0 \leq V_{R} \leq 50 \mathrm{~V} .(b)$ Plot the ratio $J_{s T}\left(V_{R}\right) / J_{s T}\left(V_{R}=0\right)$ over the same range of reversebiased voltage.

Chai Santi

Numerade Educator

Problem 12

The energy-band diagram of a Schottky diode is shown in Figure $9.6 .$ Assume the following parameters:
$$\begin{array}{rrrl}
\phi_{m}=5.2 \mathrm{~V} & \phi_{n}=0.10 \mathrm{~V} & \phi_{0} & =0.60 \mathrm{~V} \\
E_{g}=1.43 \mathrm{eV} & \delta=25& \epsilon_{i} & =\epsilon_{0} \\
\epsilon_{s}=(13.1) \epsilon_{0} & \chi=4.07 \mathrm{~V} & N_{d} & =10^{16} \mathrm{~cm}^{-3} \\
& & D_{i t} & =10^{13} \mathrm{eV}^{-1} \mathrm{~cm}^{-2}
\end{array}$$
(a) Determine the theoretical barrier height $\phi_{B 0}$ without interface states. $(b)$ Determine the barrier height with interface states. $(c)$ Repeat parts $(a)$ and $(b)$ if $\phi_{m}=4.5 \mathrm{~V}$.

Chai Santi

Numerade Educator

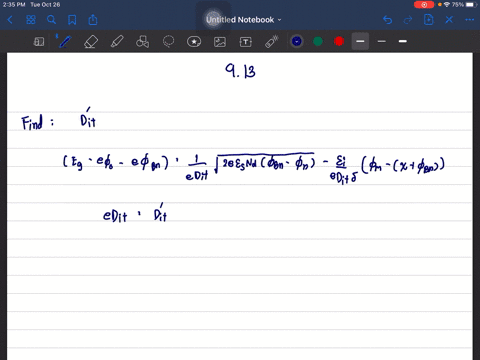

Problem 13

A Schottky barrier diode contains interface states and an interfacial layer. Assume the following parameters:
$$\begin{array}{rrrl}
\phi_{m}=4.75 \mathrm{~V} & \phi_{n}=0.164 \mathrm{~V} & \phi_{0} & =0.230 \mathrm{~V} \\
E_{g}=1.12 \mathrm{eV} & \delta=20 A & \epsilon_{i} & =\epsilon_{0} \\
\epsilon_{s}=(11.7) \epsilon_{0} & \chi=4.01 \mathrm{~V} & N_{d} & =5 \times 10^{16} \mathrm{~cm}^{-3} \\
& & \phi_{B 0} & =0.60 \mathrm{~V}
\end{array}$$
Determine the interface state density, $D_{i t}$, in units of $\mathrm{eV}^{-1} \mathrm{~cm}^{-2}$.

Chai Santi

Numerade Educator

Problem 14

A Schottky diode at $T=300 \mathrm{~K}$ is formed with $\mathrm{Pt}$ on $\mathrm{n}$ -type silicon with a doping concentration of $N_{d}=5 \times 10^{15} \mathrm{~cm}^{-3}$. The barrier height is found to be $\phi_{B n}=0.89 \mathrm{~V}$. Determine $($ a $) \phi_{n},(b) V_{b i},(c) J_{s T}$, and $(d) V_{a}$ such that $J_{n}=5 \mathrm{~A} / \mathrm{cm}^{2}$. (Neglect the barrier lowering effect.)

Chai Santi

Numerade Educator

Problem 15

(a) Consider a Schottky diode at $T=300 \mathrm{~K}$ that is formed with tungsten on $\mathrm{n}$ -type silicon. Use Figure $9.5$ to determine the barrier height. Assume a doping concentration of $N_{d}=10^{16} \mathrm{~cm}^{-3}$ and assume a cross-sectional area $A=10^{-4} \mathrm{~cm}^{2}$. Determine the forward-bias voltage required to induce a current of $(i) 10 \mu \mathrm{A},(i i) 100 \mu \mathrm{A}$, and
(iii) $1 \mathrm{~mA}$. $(b)$ Repeat part $(a)$ for a temperature of $T=350 \mathrm{~K}$. (Neglect the barrier lowering effect.)

Chai Santi

Numerade Educator

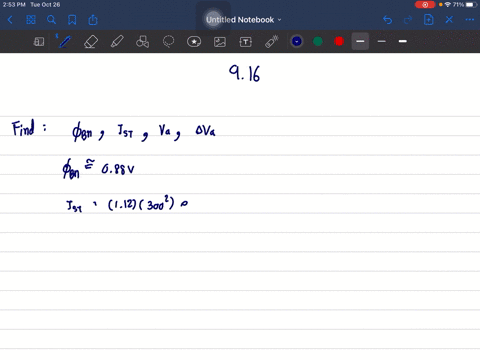

Problem 16

An Au-n-GaAs Schottky diode at $T=300 \mathrm{~K}$ has a doping concentration of $N_{d}=10^{16} \mathrm{~cm}^{-3} \cdot$ (a) Using Figure $9.5$, determine the barrier height. (b) Calculate the reverse-biased saturation current $J_{s T} .(c)$ Determine the forward-bias voltage required to induce a current density of $J_{n}=10 \mathrm{~A} / \mathrm{cm}^{2} .(d)$ What is the change in forwardbias voltage necessary to double the current density? (Neglect the Schottky barrier lowering.)

Chai Santi

Numerade Educator

Problem 17

(a) Consider an Au-n-type GaAs Schottky diode with a cross-sectional area of $10^{-4} \mathrm{~cm}^{2}$. Plot the forward-bias current-voltage characteristics over a voltage range of $0 \leq V_{D} \leq 0.5 \mathrm{~V}$. Plot the current on a log scale. $(b)$ Repeat part $(a)$ for an Au-n-type silicon Schottky diode. $(c)$ What conclusions can be drawn from these results?

Chai Santi

Numerade Educator

Problem 18

A Schottky diode at $T=300 \mathrm{~K}$ is formed between tungsten and $\mathrm{n}$ -type silicon doped at $N_{d}=10^{16} \mathrm{~cm}^{-3}$. The cross-sectional area is $A=10^{-4} \mathrm{~cm}^{2}$. Determine the reverse-biased saturation current at $(a) V_{R}=2 \mathrm{~V}$ and $(b) V_{R}=4 \mathrm{~V}$. (Take into account the Schottky barrier lowering.)

Chai Santi

Numerade Educator

Problem 19

Starting with the basic current equation given by Equation (9.18), derive the relation given by Equation (9.23).

Chai Santi

Numerade Educator

Problem 20

The reverse-saturation current densities in a pn junction diode and a Schottky diode are $10^{-11} \mathrm{~A} / \mathrm{cm}^{2}$ and $6 \times 10^{-8} \mathrm{~A} / \mathrm{cm}^{2}$, respectively, at $T=300 \mathrm{~K}$. The cross-sectional area of the Schottky diode is $A=10^{-4} \mathrm{~cm}^{2}$. The current in each diode is $0.80 \mathrm{~mA}$. The difference in forward-bias voltages between the two diodes is $0.285 \mathrm{~V}$. Determine (a) the voltage applied to each diode and $(b)$ the cross-sectional area of the pn junction diode.

Chai Santi

Numerade Educator

Problem 21

A pn junction diode and a Schottky diode each have cross-sectional areas of $A=8 \times 10^{-4} \mathrm{~cm}^{2}$. The reverse saturation current densities at $T=300 \mathrm{~K}$ for the pn junction diode and Schottky diode are $8 \times 10^{-13} \mathrm{~A} / \mathrm{cm}^{2}$ and $6 \times 10^{-9} \mathrm{~A} / \mathrm{cm}^{2}$, respectively. Determine the required forward-bias voltage in each diode to yields currents of (a) $150 \mu \mathrm{A},(b) 700 \mu \mathrm{A}$, and (c) $1.2 \mathrm{~mA}$.

Kratika Bhadauria

Kratika Bhadauria

Numerade Educator

Problem 22

(a) The two diodes described in Problem $9.21$ are connected in series and are driven by a constant current source of $0.80 \mathrm{~mA}$. Determine $(i)$ the current in each diode and (ii) the voltage across each diode. ( $b$ ) Repeat part $(a)$ for the case when the diodes are connected in parallel.

Chai Santi

Numerade Educator

Problem 23

A Schottky diode and a pn junction diode have cross-sectional areas of $A=7 \times 10^{-4} \mathrm{~cm}^{2}$. The reverse-saturation current densities at $T=300 \mathrm{~K}$ of the Schottky diode and pn junction are $4 \times 10^{-8} \mathrm{~A} / \mathrm{cm}^{2}$ and $3 \times 10^{-12} \mathrm{~A} / \mathrm{cm}^{2}$, respectively. A forward-bias current of $0.8 \mathrm{~mA}$ is required in each diode. $(a)$ Determine the forward-bias voltage required across each diode. $(b)$ If the voltage from part $(a)$ is maintained across each diode, determine the current in each diode if the temperature is increased to $400 \mathrm{~K}$. (Take into account the temperature dependence of the reversesaturation currents. Assume $E_{g}=1.12 \mathrm{eV}$ for the pn junction diode and $\phi_{B 0}=0.82 \mathrm{~V}$ for the Schottky diode.)

Chai Santi

Numerade Educator

Problem 24

Compare the current-voltage characteristics of a Schottky barrier diode and a pn junction diode. Use the results of Example $9.5$ and assume diode areas of $5 \times 10^{-4} \mathrm{~cm}^{2}$. Plot the current-voltage characteristics on a linear scale over a current range of $0 \leq I_{D} \leq 10 \mathrm{~mA}$

Chai Santi

Numerade Educator

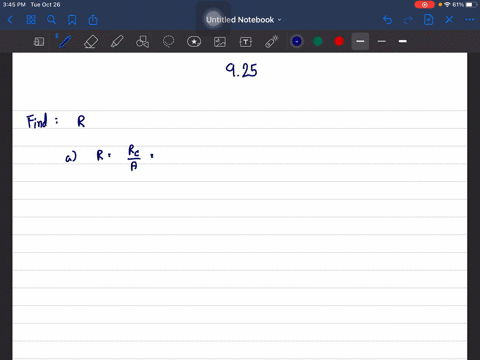

Problem 25

The contact resistance of an ohmic contact is $R_{c}=10^{-4} \Omega-\mathrm{cm}^{2}$. Determine the junction resistance if the cross-sectional area is ( $a$ ) $10^{-3} \mathrm{~cm}^{2}$, (b) $10^{-4} \mathrm{~cm}^{2}$, and $(c) 10^{-5} \mathrm{~cm}^{2}$.

Chai Santi

Numerade Educator

Problem 26

(a) The contact resistance of an ohmic contact is $R_{c}=5 \times 10^{-5} \Omega-\mathrm{cm}^{2}$. The crosssectional area of the junction is $10^{-5} \mathrm{~cm}^{2}$. Determine the voltage across the junction if the current is $(i) I=1 \mathrm{~mA}$ and $(i i) I=100 \mu \mathrm{A} .(b)$ Repeat part $(a)$ if the crosssectional area is $10^{-6} \mathrm{~cm}^{2}$.

Chai Santi

Numerade Educator

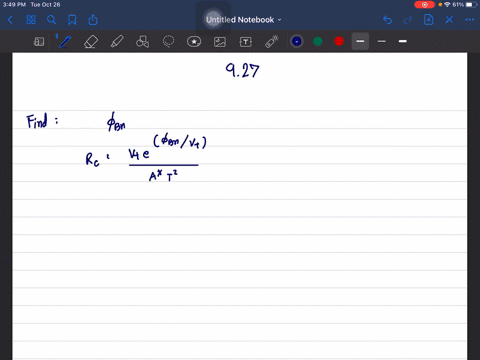

Problem 27

An ohmic contact between a metal and silicon may be formed that has a very low barrier height. (a) Determine the value of $\phi_{B n}$ that will produce a contact resistance of $R_{c}=5 \times 10^{-5} \Omega-\mathrm{cm}^{2}$ at $T=300 \mathrm{~K} .(b)$ Repeat part $(a)$ for a contact resistance of $R_{c}=5 \times 10^{-6} \Omega-\mathrm{cm}^{2}$.

Chai Santi

Numerade Educator

Problem 28

A metal, with a work function $\phi_{m}=4.2 \mathrm{~V}$, is deposited on an $\mathrm{n}$ -type silicon semiconductor with $\chi_{s}=4.0 \mathrm{~V}$ and $E_{g}=1.12 \mathrm{eV}$. Assume no interface states exist at the junction. Let $T=300 \mathrm{~K}$. (a) Sketch the energy-band diagram for zero bias for the case when no space charge region exists at the junction. (b) Determine $N_{d}$ so that the condition in part $(a)$ is satisfied. $(c)$ What is the potential barrier height seen by electrons in the metal moving into the semiconductor?

Chai Santi

Numerade Educator

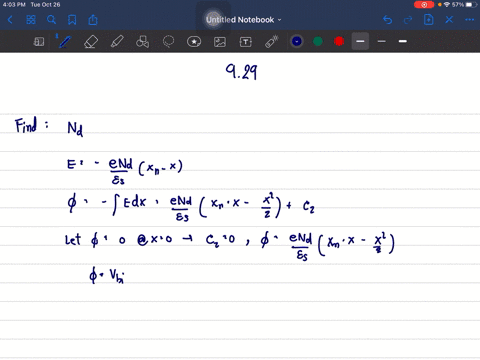

Problem 29

Consider the energy-band diagram of a silicon Schottky junction under zero bias shown in Figure P9.29. Let $\phi_{B 0}=0.7 \mathrm{~V}$ and $T=300 \mathrm{~K}$. Determine the doping required so that $x_{d}=50 \AA$ at the point where the potential is $\phi_{B 0} / 2$ below the peak value. (Neglect the barrier lowering effect.)

Chai Santi

Numerade Educator

Problem 30

A metal-semiconductor junction is formed between a metal with a work function of $4.3 \mathrm{eV}$ and $\mathrm{p}$ -type silicon with an electron affinity of $4.0 \mathrm{eV}$. The acceptor doping concentration in the silicon is $N_{a}=5 \times 10^{16} \mathrm{~cm}^{-3}$. Assume $T=300 \mathrm{~K}$. $(a)$ Sketch the thermal equilibrium energy-band diagram. (b) Determine the height of the Schottky barrier. (c) Sketch the energy-band diagram with an applied reverse-biased voltage of $V_{R}=3 \mathrm{~V} .(d)$ Sketch the energy-band diagram with an applied forward-bias voltage of $V_{a}=0.25 \mathrm{~V}$

Chai Santi

Numerade Educator

Problem 31

(a) Consider a metal-semiconductor junction formed between a metal with a work function of $4.65 \mathrm{eV}$ and $\mathrm{Ge}$ with an electron affinity of $4.13 \mathrm{eV}$. The doping concentration in the Ge material is $N_{d}=6 \times 10^{13} \mathrm{~cm}^{-3}$ and $N_{a}=3 \times 10^{13} \mathrm{~cm}^{-3}$. Assume $T=300 \mathrm{~K}$. Sketch the zero bias energy-band diagram and determine the Schottky barrier height. $(b)$ Repeat part $(a)$ if the metal work function is $4.35 \mathrm{eV}$.

Chai Santi

Numerade Educator

Problem 32

Sketch the energy-band diagrams of an abrupt $\mathrm{Al}_{0.3} \mathrm{Ga}_{0.7}$ As-GaAs heterojunction for:
(a) N $^{+}$ -AlGaAs, intrinsic GaAs, (b) N $^{+}-$ AlGaAs, p-GaAs, and $\left(\right.$ c) $\mathrm{P}^{+}-\mathrm{AlGaAs}, \mathrm{n}^{+}-$ GaAs. Assume $E_{g}=1.85 \mathrm{eV}$ for $\mathrm{Al}_{03} \mathrm{Ga}_{0.7}$ As and assume $\Delta E_{c}=\frac{2}{3} \Delta E_{\mathrm{g}}$

Chai Santi

Numerade Educator

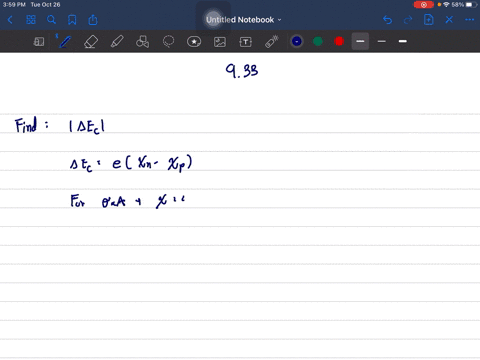

Problem 33

Repeat Problem $9.32$ assuming the ideal electron affinity rule. Determine $\Delta E_{c}$ and $\Delta E_{v}$.

Chai Santi

Numerade Educator

Problem 34

Starting with Poisson's equation, derive Equation $(9.48)$ for an abrupt heterojunction.

Chai Santi

Numerade Educator

Problem 35

(a) Derive an expression for $d V_{a} / d T$ as a function of current density in a Schottky diode. Assume the minority carrier current is negligible. (b) Compare $d V_{a} / d T$ for a GaAs Schottky diode to that for a Si Schottky diode. (c) Compare $d V_{a} / d T$ for a Si Schottky diode to that for a Si pn junction diode.

Chai Santi

Numerade Educator

Problem 36

The $\left(1 / C_{j}\right)^{2}$ versus $V_{R}$ data are measured for two Schottky diodes with equal areas. One diode is fabricated with $1 \Omega-\mathrm{cm}$ silicon and the other diode with $5 \Omega$ -cm silicon. The plots intersect the voltage axis as $V_{R}=-0.5 \mathrm{~V}$ for diode $\mathrm{A}$ and at $V_{R}=-1.0 \mathrm{~V}$ for diode $\mathrm{B}$. The slope of the plot for diode $\mathrm{A}$ is $1.5 \times 10^{18}\left(\mathrm{~F}^{2}-\mathrm{V}\right)^{-1}$ and that for diode B is $1.5 \times 10^{17}\left(\mathrm{~F}^{2}-\mathrm{V}\right)^{-1}$. Determine which diode has the higher metal work function and which diode has the lower resistivity silicon.

Chai Santi

Numerade Educator

Problem 37

Both Schottky barrier diodes and ohmic contacts are to be fabricated by depositing a particular metal on a silicon integrated circuit. The work function of the metal is 4.5 V. Considering the ideal metal-semiconductor contact, determine the allowable range of doping concentrations for each type of contact. Consider both p- and n-type silicon regions.

Chai Santi

Numerade Educator

Problem 38

Consider an n-GaAs-p-AlGaAs heterojunction in which the bandgap offsets are $\Delta E_{c}=0.3 \mathrm{eV}$ and $\Delta E_{v}=0.15 \mathrm{eV}$. Discuss the difference in the expected electron and hole currents when the junction is forward biased.

Chai Santi

Numerade Educator
