What is Stress in Physics?
Stress is the force applied to a material divided by the material's cross-sectional area. It quantifies the internal forces that neighboring particles of a continuous material exert on each other. Stress is expressed in units of pressure, typically Pascals (Pa).
What is Strain in Physics?
Strain is the measure of deformation representing the displacement between particles in the material body relative to a reference length. Strain occurs as a result of stress and is a dimensionless quantity, as it is a ratio of lengths.
What are Elastic Moduli in Physics?
Elastic moduli are material properties that measure the stiffness of a material. They describe how a material deforms under stress. The primary types of elastic moduli are:
1. Young's Modulus (E): Measures the stiffness of a material in tension or compression. It is the ratio of stress to strain. - Formula: E = stress/strain
2. Shear Modulus (G): Measures the response to shear stress (forces applied parallel or tangential to a surface). - Formula: G = shear stress/shear strain
3. Bulk Modulus (K): Describes how a material reacts to uniform pressure applied in all directions, such as underwater pressure. - Formula: K = volumetric stress/volumetric strain
How are Stress and Strain Related?
Stress and strain are related through Hooke's Law which states that, within the elastic limit of a material, the strain is directly proportional to the applied stress.
What is Hooke's Law in a Mathematical Form?
Hooke's Law can be expressed mathematically as: - For uniaxial stress: stress = E * strain - For shear stress: shear stress = G * shear strain
What Determines the Elastic Limit of a Material?
The elastic limit of a material is the maximum extent to which a material can be deformed without undergoing permanent deformation. Beyond this point, the material will not return to its original shape.
Can Stress and Strain Be Negative?
Yes, stress and strain can be negative. Compressive stress and compressive strain occur when a material is compressed. Tensile stress and tensile strain occur when a material is stretched.
Why are Elastic Moduli Important in Physics and Engineering?
Elastic moduli are crucial for designing and assessing materials and structures. They enable engineers to predict how materials will deform under various types of forces, ensuring safety, efficiency, and reliability in construction and manufacturing.
(II) (a) What is the minimum cross-sectional area required of a vertical steel cable from which is suspended a 270-kg chandelier? Assume a safety fac…
(I) Suppose the point of insertion of the biceps muscle into the lower arm shown in Fig. 9-13a (Example 9-8) is 6.0 cm instead of 5.0 cm; how much ma…

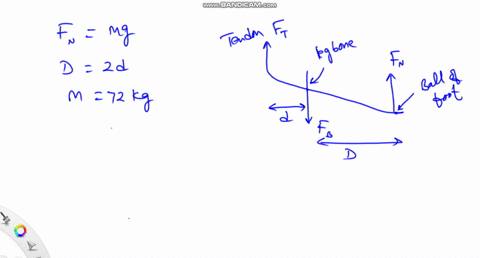

(II) The Achilles tendon is attached to the rear of the foot as shown in Fig. 9-73. When a person elevates himself just barely off the floor on the "…
(II) (a) What is the maximum tension possible in a 1.00-mm-diameter nylon tennis racket string? (b) If you want tighter strings, what do you do to pr…
