Applied Physics

Dale Ewen, Neill Schurter, Erik Gundersen

Chapter 17

Basic Electricity - all with Video Answers

Educators

MA

Chapter Questions

Problem 1

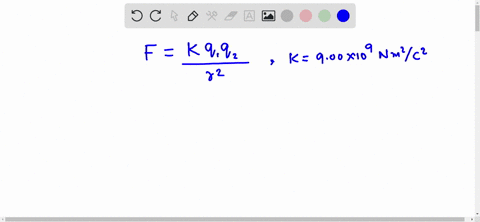

Two charges, each $-4.50 \mu \mathrm{C}$, are $0.150 \mathrm{cm}$ apart. Find their repulsive force.

Prabhu Ramji

Prabhu Ramji

Numerade Educator

Problem 2

The repulsive force between two identical negative charges is $0.750 \mathrm{N}$ when they are $0.100 \mathrm{m}$ apart. Find the amount of each charge.

Prabhu Ramji

Numerade Educator

Problem 3

A charge of $2.50 \times 10^{-8} \mathrm{C}$ exerts a force of $0.0250 \mathrm{N}$ on a second charge of $5.00 \times 10^{-7} \mathrm{C} .$ How far apart are the charges?

Prabhu Ramji

Numerade Educator

Problem 4

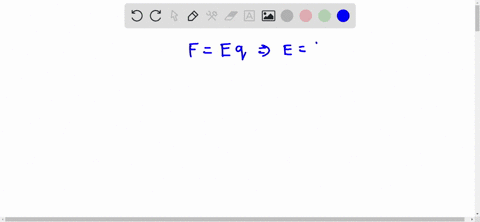

A positive test charge of $2.50 \mu \mathrm{C}$ is placed in an electric field. The force on it is $0.500 \mathrm{N} .$ What is the magnitude of the electric field at the location of the test charge?

Prabhu Ramji

Numerade Educator

Problem 5

Find the magnitude of the electric field in which a negative charge of $1.50 \times 10^{-8} \mathrm{C}$ experiences a force $\mathrm{pf} 9.0590 \mathrm{N}$

Prabhu Ramji

Numerade Educator

Problem 6

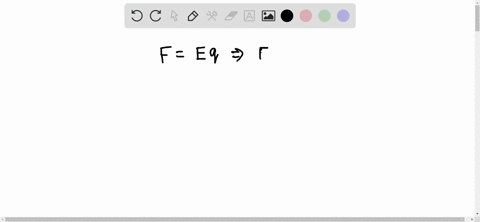

What force is exerted on a test charge of $4.25 \times 10^{-5} \mathrm{C}$ if it is placed in an electric field of magnitude $2.50 \times 10^{4} \mathrm{N} / \mathrm{C} ?$

Prabhu Ramji

Numerade Educator

Problem 7

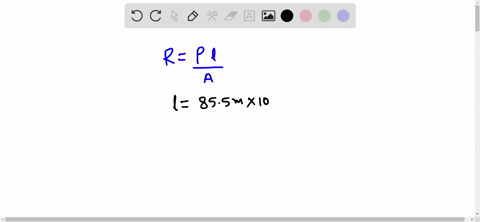

Find the resistance of $85.5 \mathrm{m}$ of No. 20 aluminum wire $\left(\rho=2.83 \times 10^{-6} \Omega \mathrm{cm},\right.$ $\left.A=2.07 \times 10^{-2} \mathrm{cm}^{2}\right)$

Prabhu Ramji

Numerade Educator

Problem 8

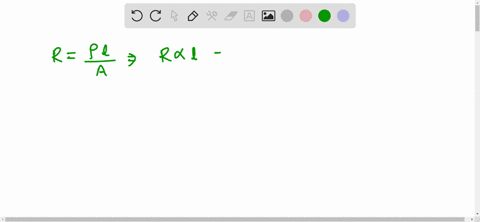

At $75^{\circ} \mathrm{F}, 120 \mathrm{ft}$ of wire has a resistance of $0.743 \Omega .$ Find the resistance of $560 \mathrm{ft}$ of this wire.

Prabhu Ramji

Numerade Educator

Problem 9

Find the resistance of 134 m of No. 20 copper wire at $20^{\circ} \mathrm{C}\left(\rho=1.72 \times 10^{-6} \Omega \mathrm{cm},\right.$, $\left.A=2.07 \times 10^{-2} \mathrm{cm}^{2}\right)$

Prabhu Ramji

Numerade Educator

Problem 10

Find the length of a copper wire with resistance $0.0273 \Omega / \mathrm{ft}$ and total resistance $3.97 \Omega$.

Prabhu Ramji

Numerade Educator

Problem 11

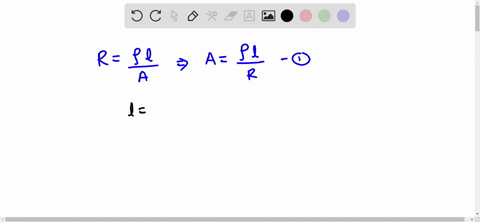

Find the cross-sectional area of copper wire at $20^{\circ} \mathrm{C}$ that is $55.4 \mathrm{m}$ long and has resistivity $\rho=1.79 \times 10^{-6} \Omega \mathrm{cm}$ and resistance $0.943 \Omega$

Prabhu Ramji

Numerade Educator

Problem 12

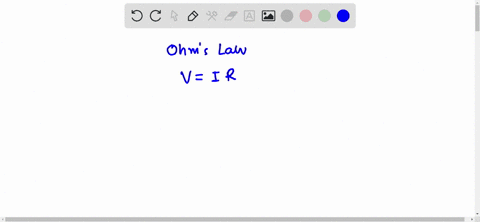

A heating element operates on 115 V. If it has a resistance of $15.4 \Omega,$ what current does it draw?

Prabhu Ramji

Numerade Educator

Problem 13

A heating coil operates on $220 \mathrm{V}$. If it draws $8.75 \mathrm{A}$, find its resistance.

Prabhu Ramji

Numerade Educator

Problem 14

What current does a $234-\Omega$ resistance draw on 115 V?

Prabhu Ramji

Numerade Educator

Problem 15

Four resistors of $3.40 \Omega, 6.54 \Omega, 8.32 \Omega,$ and $1.34 \Omega$ are connected in series with a $12.0-\mathrm{V}$ battery. Find the total resistance of the circuit.

Prabhu Ramji

Numerade Educator

Problem 16

Find the current in Problem $15 .$

Prabhu Ramji

Numerade Educator

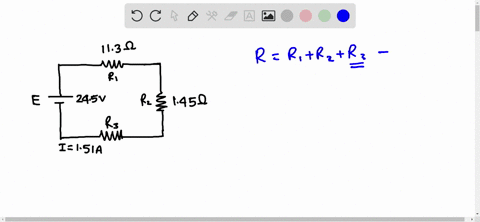

Problem 17

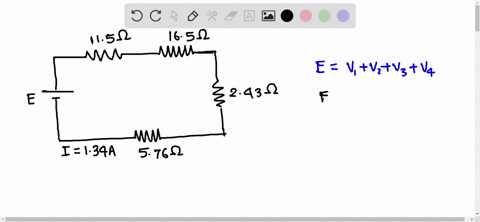

Find the emf in the circuit shown in Fig. 17.76 .

Prabhu Ramji

Numerade Educator

Problem 18

Find the equivalent resistance in the circuit shown in Fig. 17.77 .

Prabhu Ramji

Numerade Educator

Problem 19

Find $R_{3}$ in the circuit in Problem 18 .

Prabhu Ramji

Numerade Educator

Problem 20

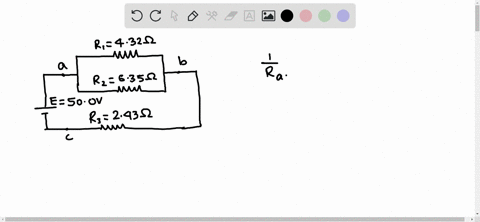

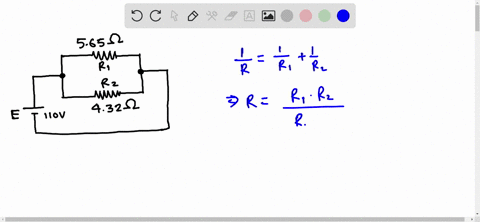

Find the equivalent resistance in the circuit shown in Fig. 17.78 .

Prabhu Ramji

Numerade Educator

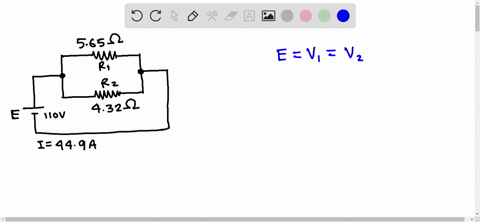

Problem 21

Find the current in Fig. 17.78 .

Prabhu Ramji

Numerade Educator

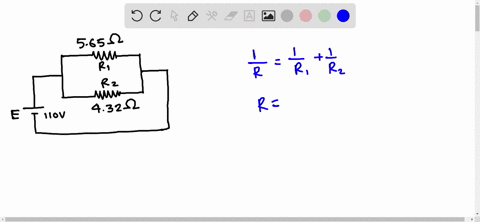

Problem 22

Find the current through $R_{1}$ in Fig. 17.78 .

Prabhu Ramji

Numerade Educator

Problem 23

Find the current through $R_{2}$ in Fig. 17.78 .

Prabhu Ramji

Numerade Educator

Problem 24

Find the equivalent resistance in the circuit of Fig. $17.79 .$

Prabhu Ramji

Numerade Educator

Problem 25

Find the current through $R_{3}$ in Fig. 17.79 .

Prabhu Ramji

Numerade Educator

Problem 27

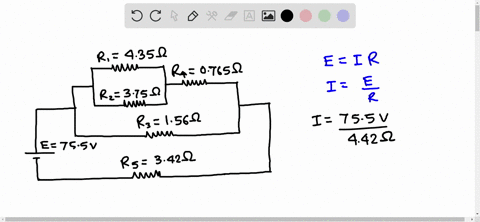

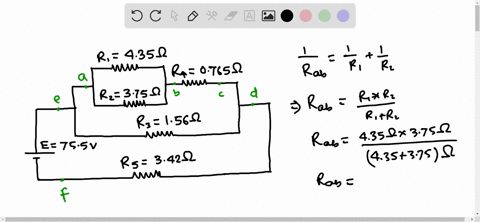

Find the equivalent resistance in Fig. 17.80 .

Prabhu Ramji

Numerade Educator

Problem 28

Find the current in $R_{5}$ in Fig. 17.80 .

Prabhu Ramji

Numerade Educator

Problem 29

Find the voltage drop across $R_{5}$ in Fig. 17.80 .

Prabhu Ramji

Numerade Educator

Problem 30

Find the current in $R_{1}$ in Fig. 17.80 .

Umar Sohail Qureshi

Umar Sohail Qureshi

Numerade Educator

Problem 31

Find the voltage drop across $R_{1}$ in Fig. 17.80 .

Umar Sohail Qureshi

Umar Sohail Qureshi

Numerade Educator

Problem 32

Using the formulas for series and parallel circuits, fill in the blanks in the table below for the circuit of Fig. 17.81

MA

Matty Anderson

Numerade Educator

Problem 33

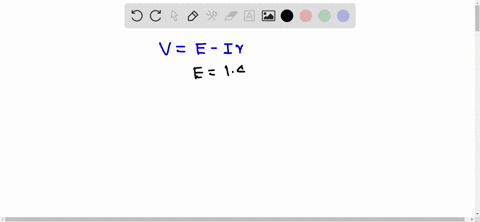

A cell has an emf of $1.44 \mathrm{V}$ and an internal resistance of $0.0550 \Omega .$ If there is $0.135 \mathrm{A}$ in the cell, what voltage is applied to the external circuit?

Prabhu Ramji

Numerade Educator

Problem 34

The voltage applied to a circuit is $12.0 \mathrm{V}$ when the current through the battery is 0.858 A. If the internal resistance of the battery is $0.245 \Omega,$ what is the emf?

Prabhu Ramji

Numerade Educator

Problem 35

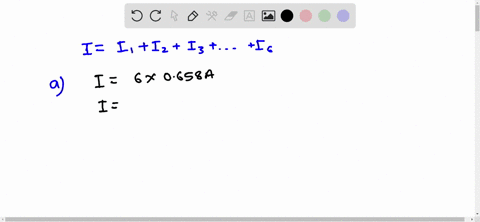

Six 6.00-V cells, each with an internal resistance of 0.0987 $\Omega$ and current output of $0.658 \mathrm{A},$ are connected in parallel to form a battery in a certain circuit. (a) What is the current in the external circuit? (b) What is the emf of the battery? (c) What is the internal resistance of the battery?

Prabhu Ramji

Numerade Educator

Problem 36

Find the current in the circuit shown in Fig. 17.82 .

Vishal Gupta

Numerade Educator

Problem 37

Find the total resistance in the circuit shown in Fig. 17.83 .

Vishal Gupta

Numerade Educator

Problem 38

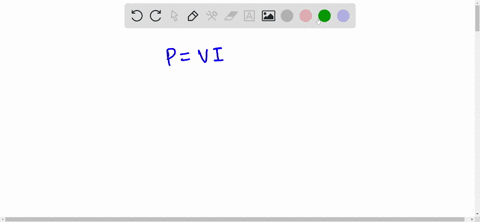

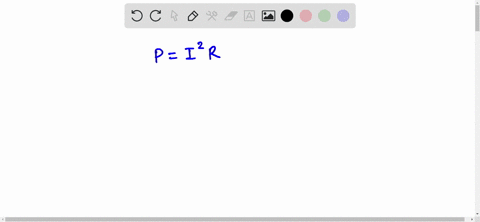

What power is needed for a drill that draws $2.45 \mathrm{A}$ and has a resistance of $6.55 \Omega$ on a $110-\mathrm{V}$ circuit?

Prabhu Ramji

Numerade Educator

Problem 39

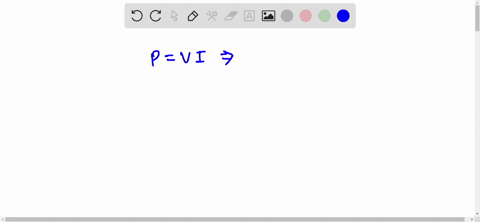

How many amperes will a $15 \overline{0}$ - $W$ light bulb draw on a $11 \overline{0}$ - $V$ circuit?

Prabhu Ramji

Numerade Educator

Problem 40

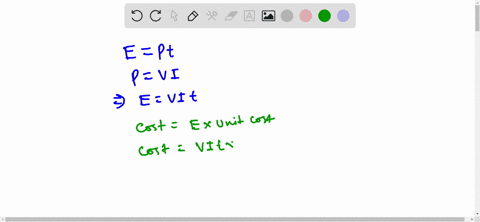

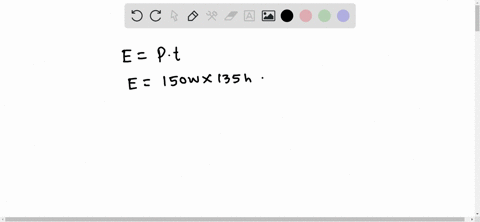

What is the cost to operate the lamp in Problem 39 for 135 h if the cost of energy is $\$ 0.05 / \mathrm{kWh} ?$

Prabhu Ramji

Numerade Educator

Problem 41

If the cost of energy is $\$ 0.043 / \mathrm{kWh},$ how long could you operate a motor that draws $0.40 \mathrm{A}$ on a $110-\mathrm{V}$ line for $\$ 0.45 ?$

Prabhu Ramji

Numerade Educator

Problem 42

How many amperes will a $10\overline0-\mathrm{W}$ lamp draw on a $110-\mathrm{V}$ line?

Prabhu Ramji

Numerade Educator
